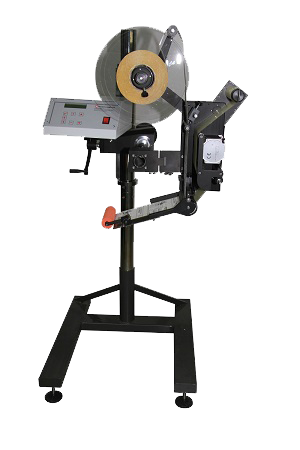

TRITO – 100
Automatic self-adhesive label applicator combinable with production lines, ideal for application on flat or slightly irregular products. The TRITO labelling head can be used for applications on the tops or sides of products. The main feature of the TRITO model is simplicity of installation and use.
Technical features
- Speed – variable from 0-30 m.
- Max. label width – 100 mm
- Min. label width – 10 mm
- Max. label length – 500 mm (other sizes on request)
- Min. label length – 10 mm
- Min. internal spool diameter – 38 mm (76 with adapter)
- Max. external diameter – 300 mm
- Motor type – step/step
- Electronic control unit controlled by a microprocessor with display, possibility of regulating delivery speed, start delay, pre-distribution label, item counter
- Start photocell
- Label reading via photocell
- Power supply – 220 or 110 V 50/60 Hz
- Weight – 15 kg
